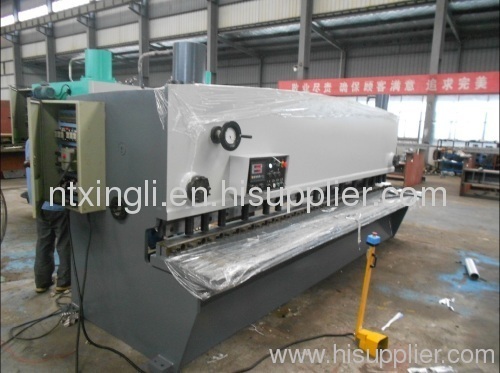

Shearing Machine guillotine cutting machine from China manufacturer

Shearing Machine guillotine cutting machine

Price:	5665.0~63656.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Jiangsu, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: SM-8x3200

Production Capacity: 60 sets

Delivery Date: 15-25 workdays

Cutting thickness:: 8mm

Strength of the sheet:: 450 N/mm²

Means of Transport: Ocean,Land

Packing: Covering with colour cloth,...

System: Estun E10 digital system

Cutting width:: 3200mm

Shearing angle:: 0.5-2.5°

Guillotine
Hydraulic shearing machine
Guillotine design,high precision
ISO90001:2008& CE certificate
NC system control
Motorized back gauge

Guillotine shearing machine

1.All steel welded structure,vibrating treatment of ageing for removal of internal stress,with good rigidity and stability

2.Integrated hydraulic transmission system,with good reliability

3.Triple support rolling guide rail to eliminate gaps of support and enhance shearing quality

4.Mechanical real stopper with manual fine tuning,and digital indication

5.Clearance in between shearing blades adjusted by hand wheel to be quick,accurate and convenient

6.Rectangular blades with four cutting edges to prolong working life,adjusttacble shearing angle to reduce deformation of the sheet

7.Upper blade holder has inward tilling structure to facilitate material feed i and also enhance accuracy of the work piece

8.Function of shearing in sections with aligning light

9.Schneider electric components

10.American OMEGA valves,Siemens Motor

11.Rear roller supporting back

12.415V/3ph/50Hz + English/Spanish/Chinese instruction manual,maintenance manual(Incl,Hydraulic&Electrical diagrams)

Parameters and character

Cutting thickness: 8mm

Cutting width: 3200mm

Strength of the sheet: 450 N/mm²

Shearing angle: 0.5-2.5°

Back gauge range: 10-600mm

Stroke number: 8-35

Distance between vertical distances: 3450mm

Blade length: 3300mm

Work table light: 800mm

Knife Blade material: 6CrW2Si

Main motor power: 11kw, speed 1500 r/min (Y132M-4)

Back gauge motor: 0.55kw, speed 910r/min (Y802-6)

Axial plunger pump: pressure 32Mpa, flow 25L/min (MCY14-1B)

Gear pump: NBT5G-40F

Overall Dimension (L x W x H): 3750mm x 1750mm x 1800mm

Weight:7600KG

415V/60Hz/3 Phase

Character

All welded structure, vibrating treatment of ageing for removal of internal stress, with good rigidity stability

Integrated hydraulic transmission system, with good reliability

Triple support rolling guide rail to eliminate gaps of support and enhance shearing quality

Back gauge use intelligent digital display device, shear quantity can be automatic counted, distance of back gauge can be set according to requirements of customers

Clearance between shearing blades adjusted by hand wheel to be quick, accurate and convenient

Rectangular blades with four cutting edges to prolong working life, adjustable shearing angle to reduce deformation of the sheet

Upper blade holder has inward tilting structure to facilitate material feed in and also enhance accuracy of the work piece

Function of shearing in sections, function of lamplight illume device

Optional rear material holding device

Main components

--Integrated hydraulic system-OMEGA-USA

----Axial plunger pump-SHANGHAI

-- Main motor-SIEMENS-Germany

--Japan VALQUA seals-JAPAN

-- SIEMENS main electric parts-Germany

Accessory

--Front extensive arm, 5 pieces

--Anchor bolt, 4 pieces

--Nut, some pieces

--Washer, some pieces

--Oil gun, 1 piece

--Foot pedal
